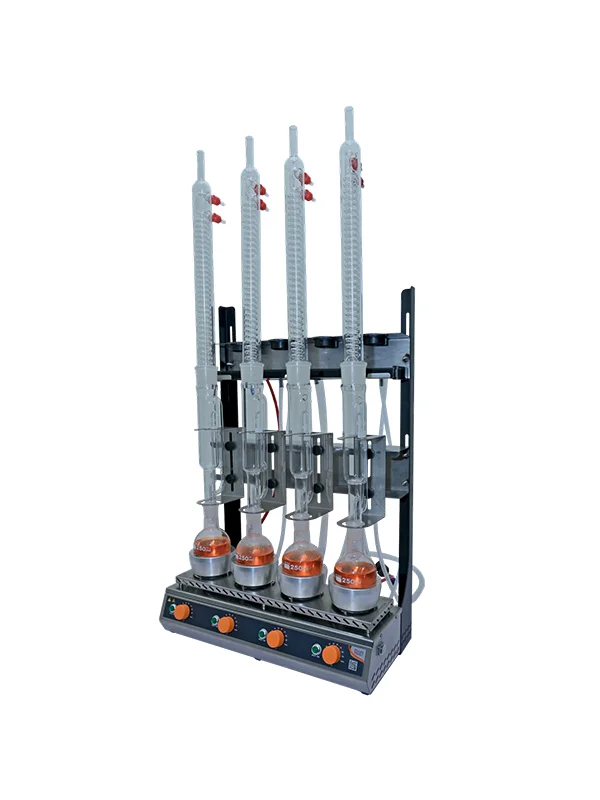

FAT DETERMINATION APPARATUS SOXHLET/TWISSELMAN APPARATUS
Features:
- Cost – effective and user friendly apparatus for hot extraction.
- Energy individually adjustable for every sample position.
- Cooling water distribution, strips ensures uniform cooling at sample positions.
- Practical condenser ledge to safely deposit the condenser between hot extractions.
- Brackets for safely holding the intermediate extraction pieces after removing the sample container
- Material of construcon of adaptors is SS 304 Grade
Technical Specification:
| Voltage | : 230 VAC |
| Frequency | : 50 Hz |
| Power consumption | : ~1500 W |
| Power consumption | : 7 A |
| Weight (without glass) | : approx. 15 kg |
| Position | : 4 |
| MOC Adapters | : Aluminum Alloy |
| Flask Capacity | : 250ml |
| Extraction Capacity | : 500ml |
| Condenser | : 100ml |
| Plate/Adaptor Temp. | : upto 400°C |
| Dimensions in cm (W x D x H) (without glass) | : 504x274x765 mm |
| IP Class | : 20 |
Also Available

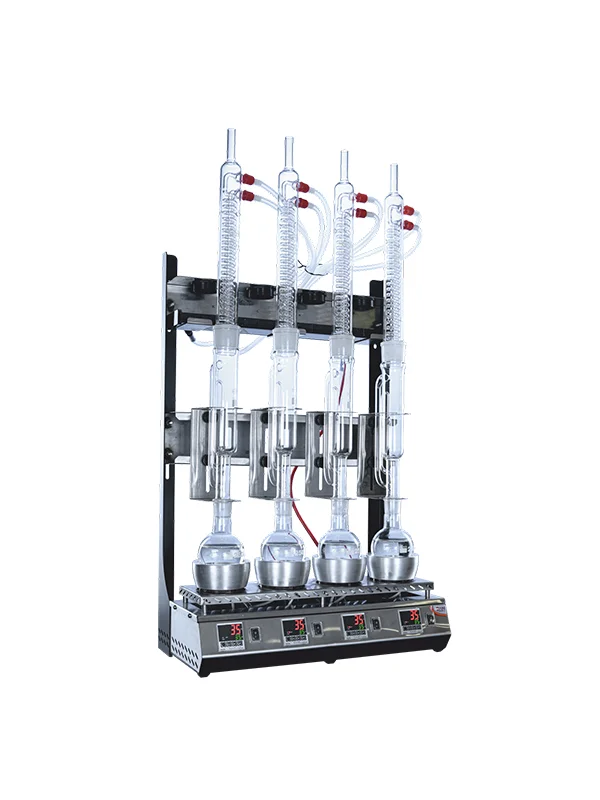

4 Position Soxhlet Extraction (Digital)
